The 300mm (12 inch) red, amber and green LED traffic light provides a 300mm lens format for traffic-control installations. Its IP65-rated, UV-resistant polycarbonate housing is suitable for outdoor use at vehicle depots, car parks, weighbridges, race tracks and mine sites.

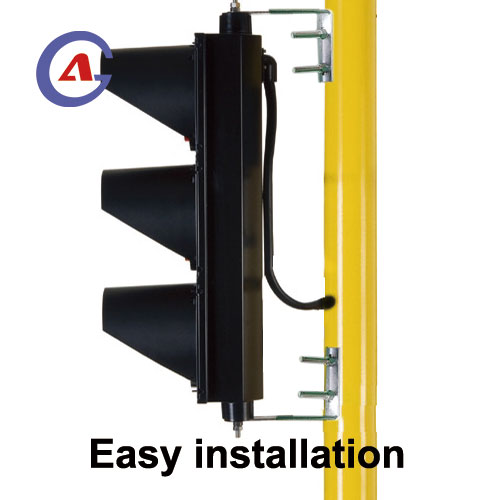

Choose 12–24V DC or 85–265V AC input to match the installation. Supplied sun visors and right-angle metal mounting brackets support pole or wall mounting. A rear M20 entry and conduit hood provide cable-entry options.
Technical specifications
- Input Voltage: 12-24VDC or 85-265VAC
- Power factor: >0.9
- Lens Diameter: 300mm ( 100mm, 200mm, 400mm also available)
- Available Type: full screen, arrow, bicycle, U-turn, other types on demand
- Aspects: normally optional from 1 to 4 aspects, more aspects on demand
- Color-Wavelength: Red 620~630nm, Amber 590~594nm, Green 503~508nm
- Working Temperature: -40ºC ~ +80ºC
- Rating: IP65 Weather Resistant

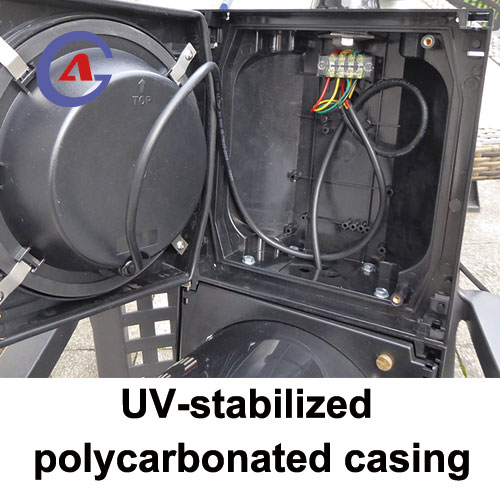

- Housing: UV-resistant polycarbonate
- Working Humidity: ≤0.97
- Average Life of LEDs: 80,000 Hours
- Sun Visors: Rotatable for horizontal or vertical mounting; right-angle metal mounting brackets included
.jpeg?w=750&h=500)
.jpeg?w=750&h=500)
.jpeg?w=750&h=500)
Configuration and quotation
Full-screen, arrow, bicycle and U-turn signal types are available, with other types on request. Specify the required signal display, supply voltage, number of aspects, mounting arrangement and quantity when contacting us.
Request a project quotation and ask for a dimensional drawing or technical specification sheet to check compatibility with your installation.
Compare lens diameters
The published supply options for these models are 12–24 V DC or 85–265 V AC. Confirm the electrical version when requesting a quote; do not connect a DC version to an AC supply.
| Model | Diameter | Listed signal options |
|---|---|---|
| 100 mm / 4 inch | 100 mm | Full disc |
| 200 mm / 8 inch | 200 mm | Full disc, arrow, bicycle or U-turn |
| 300 mm / 12 inch | 300 mm | Full disc, arrow, bicycle or U-turn |
Lens diameter alone does not determine suitability for a road. Confirm the signal type, mounting, controller compatibility and project requirements.
Configuration and technical documents
This model uses 300 mm LED optics. Select the electrical version and signal arrangement for the installation.
- Specify the supply voltage and AC or DC; the listed versions are alternatives, not interchangeable connections.
- Specify the number of aspects, signal symbols and vertical or horizontal arrangement.
- Request the dimensional and wiring drawings for the selected version and confirm compatibility with your controller.
Related technical guide
Include the model, quantity, destination and project requirements in your inquiry.
