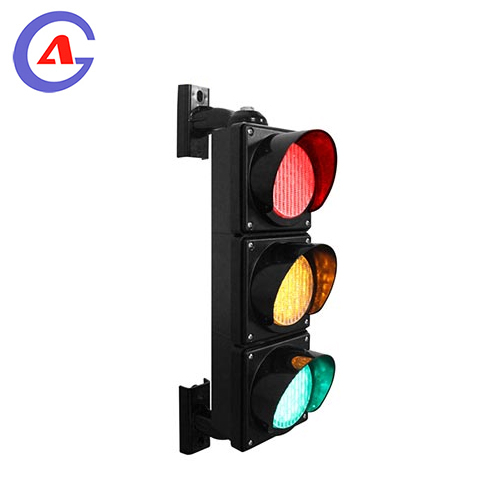

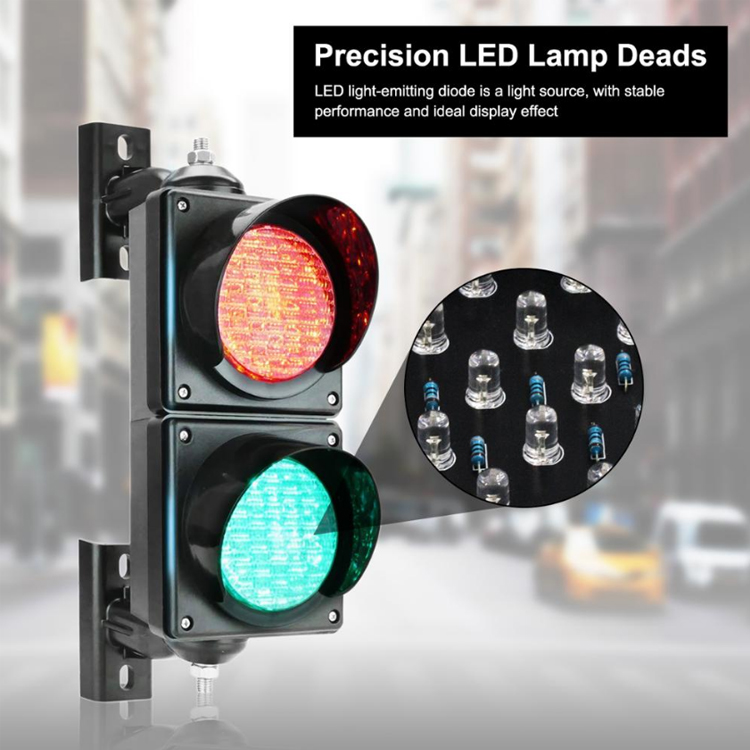

The 100mm (4 inch) LED traffic signal light is designed for loading bays, forklift intersections, roads and parking areas. Its UV-resistant polycarbonate housing and IP65 rating support outdoor installation. The signal head uses 31 LEDs and is available with 12–24V DC or 85–265V AC input options.
Technical specifications
- Input Voltage: 12-24VDC or 85-265VAC
- Power factor: >0.9
- Lens Diameter: 100mm
- Available Type: full screen

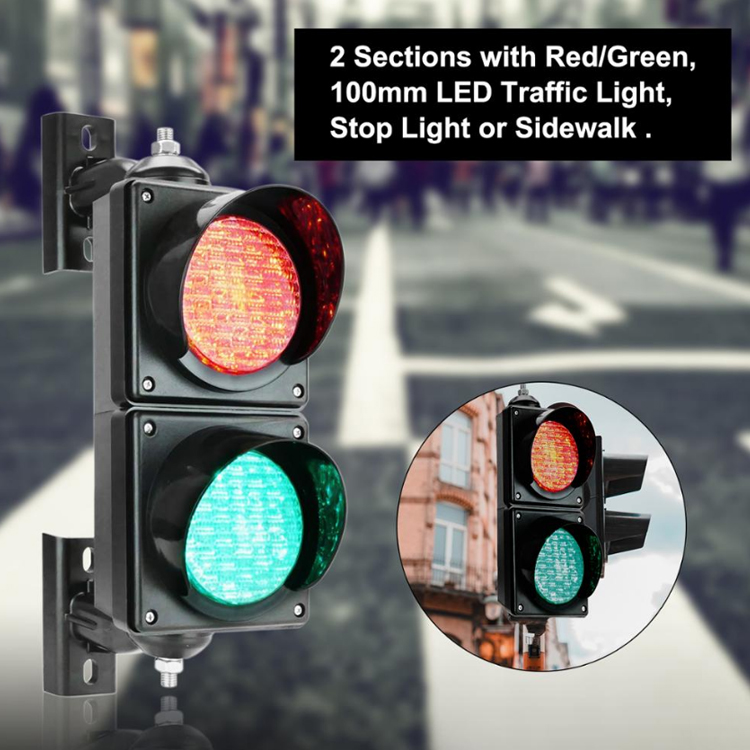

- Aspects: normally optional from 1 to 3 aspects, more aspects on demand
- Color-Wavelength: Red 620~630nm, Amber 590~594nm, Green 503~508nm
- Working Temperature: -40ºC ~ +80ºC
- Rating: IP65 Weather Resistant
- Housing: UV-resistant polycarbonate
- Working Humidity: ≤0.97
- Average Life of LEDs: 80,000 Hours
- Sun Visors: Rotatable for horizontal or vertical mounting; right-angle metal mounting brackets included
-11.jpeg?w=750&h=750)
-10.jpeg?w=750&h=750)
Configuration and project enquiries
One to three signal aspects are normally available, with additional aspects on request. Tell us the required voltage, signal colours, number of aspects, mounting orientation and order quantity so we can confirm the suitable configuration.
Use the Request a quote button to ask for a project quotation, dimensional drawing or technical specification sheet before ordering.
Compare lens diameters
The published supply options for these models are 12–24 V DC or 85–265 V AC. Confirm the electrical version when requesting a quote; do not connect a DC version to an AC supply.
| Model | Diameter | Listed signal options |
|---|---|---|
| 100 mm / 4 inch | 100 mm | Full disc |
| 200 mm / 8 inch | 200 mm | Full disc, arrow, bicycle or U-turn |
| 300 mm / 12 inch | 300 mm | Full disc, arrow, bicycle or U-turn |
Lens diameter alone does not determine suitability for a road. Confirm the signal type, mounting, controller compatibility and project requirements.
Prepare your inquiry
Include the model, quantity and destination country. Add the intended application, available power supply and installation requirements so we can review the configuration.
What should I confirm before ordering?
- Dimensions and mounting: check the available space and request the drawing for your selected model.
- Power and control: specify the voltage, AC or DC, and the equipment it needs to work with.
- Documentation: identify the standards or certificates required by your project and request documents for the selected model and configuration.
How do I check lead time and delivery?
Include the quantity, destination and required date. Request confirmation of availability, production lead time and shipping terms in your quotation.
