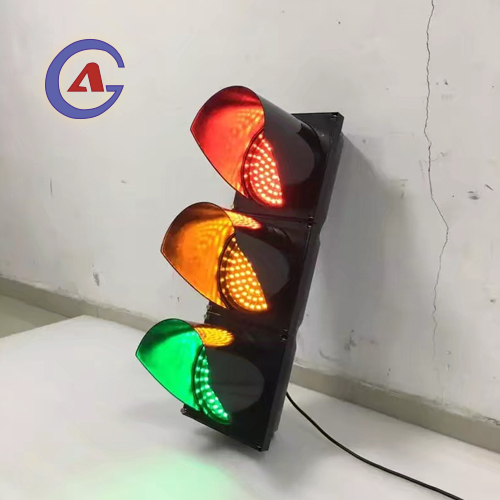

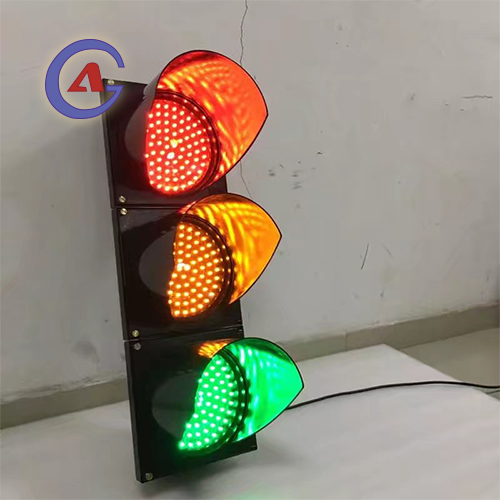

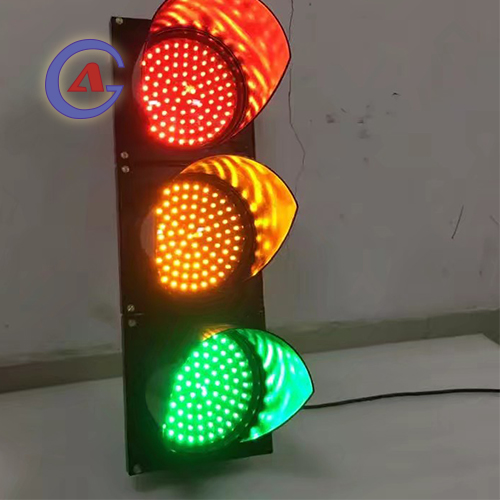

200mm 8 inch Red Amber Green Traffic Light

Name: 200mm 8 inch Red Amber Green Traffic Light
SKU: 18062023370426482769302470

·Comply with: CE, EN12368 and other related international standards. ·Energy saving, power consumption 90% less than incandescent bulbs ·High-intensity and efficient LED source, Life span more than 80,000 hrs. ·Rational designed optical lens, anti-phantom effect, optimal viewing angle. ·IP65 weatherproof. Environmental friendly ·Perfect precise measurement of casing dimension ·Easy to assemble

$0.00 USD

Quantity

The 200mm (8 inch) red, amber and green LED traffic light supports traffic control at vehicle depots, car parks, garages, weighbridges, race tracks and mine sites. It combines a UV-resistant polycarbonate housing with IP65 weather resistance and a choice of 12–24V DC or 85–265V AC input.

Sun visors and right-angle metal brackets are included for pole or wall mounting. The rear M20 entry supports a nylon cable gland; the supplied conduit hood can be used with flexible conduit.

Technical specifications

Input Voltage: 12-24VDC or 85-265VAC
Power factor: >0.9
Lens Diameter: 200mm ( 100mm, 300mm, 400mm also available)
Available Type: full screen, arrow, bicycle, U-turn, other types on demand
Aspects: normally optional from 1 to 4 aspects, more aspects on demand
Color-Wavelength: Red 620~630nm, Amber 590~594nm, Green 503~508nm
Working Temperature: -40ºC ~ +80ºC
Rating: IP65 Weather Resistant
Housing: UV-resistant polycarbonate
Working Humidity: ≤0.97
Average Life of LEDs: 80,000 Hours
Sun Visors: Rotatable for horizontal or vertical mounting; right-angle metal mounting brackets included

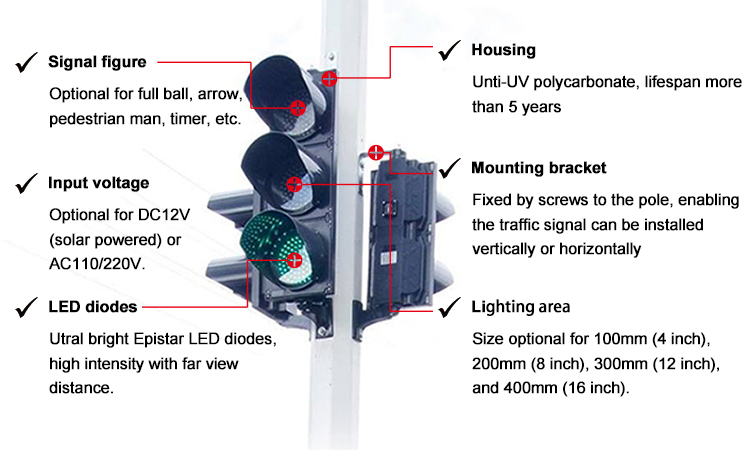

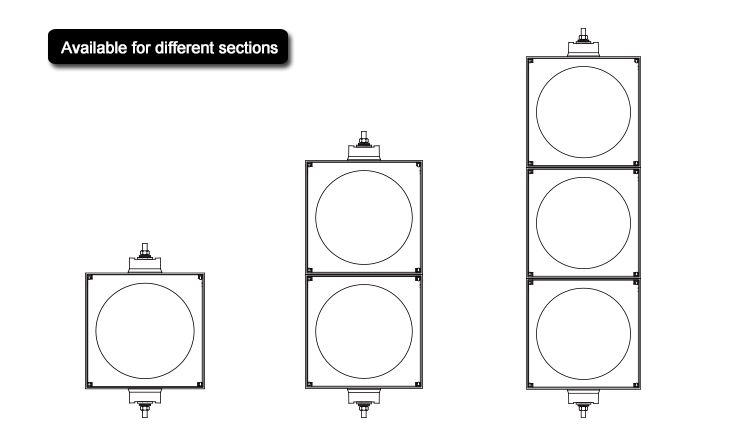

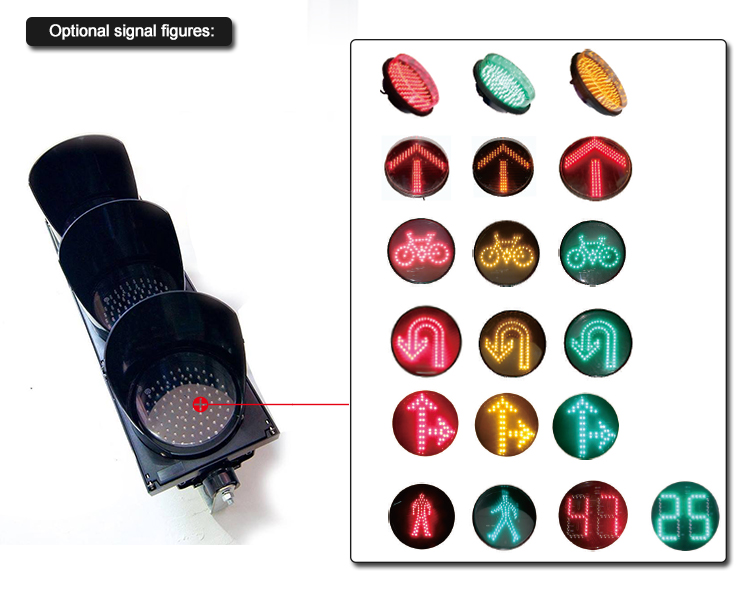

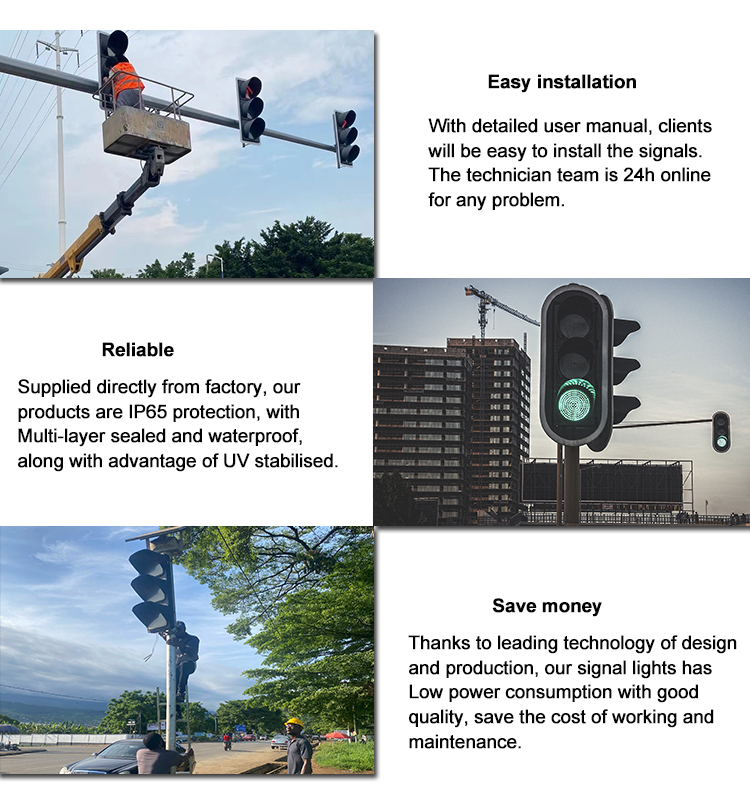

Traffic signals at night Diagram of traffic signal head components Signal head and available lens patterns Drawings of one, two and three-aspect signals Traffic signal mounting application examples

Signal options and project enquiries

Available signal types include full-screen, arrow, bicycle and U-turn displays, with other types on request. Please confirm the required display, voltage, number of aspects, mounting arrangement and quantity when requesting a quotation.

Use the Request a quote button to ask for a technical specification sheet, dimensional drawing and configuration advice for your installation.

Compare lens diameters

The published supply options for these models are 12–24 V DC or 85–265 V AC. Confirm the electrical version when requesting a quote; do not connect a DC version to an AC supply.

LED traffic signal models
Model	Diameter	Listed signal options
100 mm / 4 inch	100 mm	Full disc
200 mm / 8 inch	200 mm	Full disc, arrow, bicycle or U-turn
300 mm / 12 inch	300 mm	Full disc, arrow, bicycle or U-turn

Lens diameter alone does not determine suitability for a road. Confirm the signal type, mounting, controller compatibility and project requirements.

Prepare your inquiry

Include the model, quantity and destination country. Add the intended application, available power supply and installation requirements so we can review the configuration.

What should I confirm before ordering?

Dimensions and mounting: check the available space and request the drawing for your selected model.
Power and control: specify the voltage, AC or DC, and the equipment it needs to work with.
Documentation: identify the standards or certificates required by your project and request documents for the selected model and configuration.

How do I check lead time and delivery?

Include the quantity, destination and required date. Request confirmation of availability, production lead time and shipping terms in your quotation.
